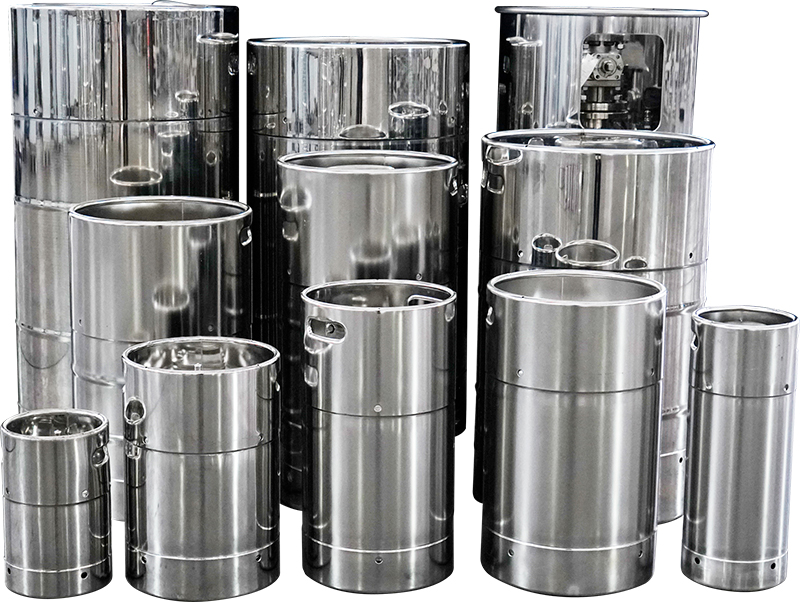

产品特点 Product Features
◆材质：SUS304/SUS316L, 内部EP 处理。
◆桶口：采用凹凸式法兰密封，密封垫采用PTFE 材质。
◆接口形式：1/8”、1/4"、1/2”、3/4“不锈钢自闭式快速转换接头。
◆设计压力：0.7Mpa; 试验压力：0.45Mpa; 使用压力：0.09Mpa。
◆清洗方式：清水清洗或露点清洗。
◆焊接工艺：钨极氲弧气体保护焊(TIG) 焊缝单面焊接双面成型。
◆产品：耐腐蚀、不老化、不生锈。便于长期储存及长途运输，稳定可靠，更耐碰撞，可长期周转使用。
◆Material:SUS304/SUS316L,Internal EP processing,
◆The barrel mouth is sealed with concave and convex flange,and the sealing gasket is made of PTFE material.
◆Interface type:118",1/4",1/2",3/4"stainless steel self-closed quick adapter.
◆Design pressure:0.7Mpa;Test pressure:0.45Mpa;Operating pressure:0.09Mpa.
◆Cleaning method:Clean water or Dew point cleaning.
◆Welding process:Tungsten stean-arc gas shielded welding (TIG)weld single-side welding double-sided forming.
◆Product corrosion resistance,no aging,no rust.Easy for long-term storage and long-distance transportation,stable and reliable, more resistant to collision,can be used for long-term turnover.
