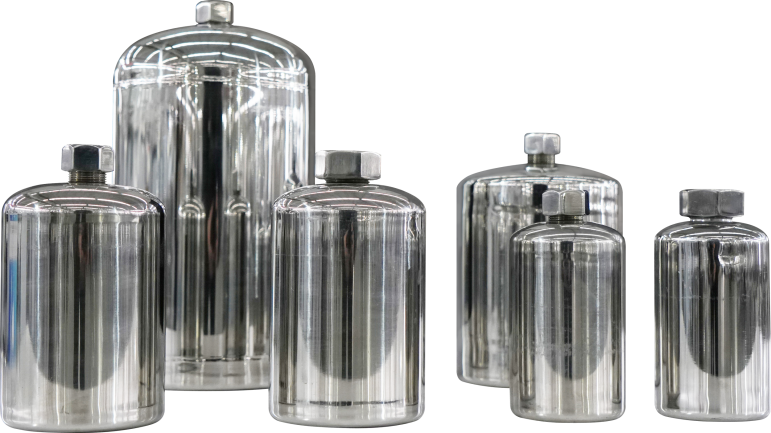

液体样品瓶
Solid Drum Series

当前位置:首页 >> 产品中心 >> 液体样品瓶
    查看详情
    >产品特点 Product  Features
    ◆材质: SUS304/SUS316L  内部EP 处理。
    ◆液体样品瓶口:采用螺纹密封,密封垫采用PTFE 材质。
    ◆固体样品瓶口:采用法兰式密封,密封垫采用 PTFE 材质。
    ◆固体样品瓶接口形式: DN50 或DN80 衬氟球阀。
    ◆清洗方式:清水清洗或露点清洗。
    ◆焊接工艺:钨极氲弧气体保护焊(TIG) 焊缝单面焊接双面成型。
    ◆桶壁:内外部光洁度高,焊缝与桶壁同时达到镜面的效果,重力出料无残留。
    ◆产品:耐腐蚀、不老化、不生锈;缓解了客户在产品销售过程中送样的难点,此产品还适宜用于要求较高的高精密度实验室。


    ◆Material: SUS304/SUS316L internal EP treatment.
    ◆The liquid sample bottle mouth screw seal, gasket PTFE material.
    ◆The solid sample bottle mouth flange seal, gasket PTFE material.

    ◆Solid sample bottle interface form: DN50 or DN80 fluorine ball valve.

    ◆Cleaning method: water cleaning or dew point cleaning.

    ◆Welding process: tungsten inert gas shielded welding (TIG) weld single-sided welding double-sided forming.

    ◆The barrel wall inside and outside high finish, weld and barrel wall at the same time to achieve the effect of mirror, gravity discharge without residue.

    ◆Product corrosion resistance, no aging, no rust. Alleviate the customer in the product sales process of the difficulties of sampling, this product is also suitable for high precision laboratory requirements.
